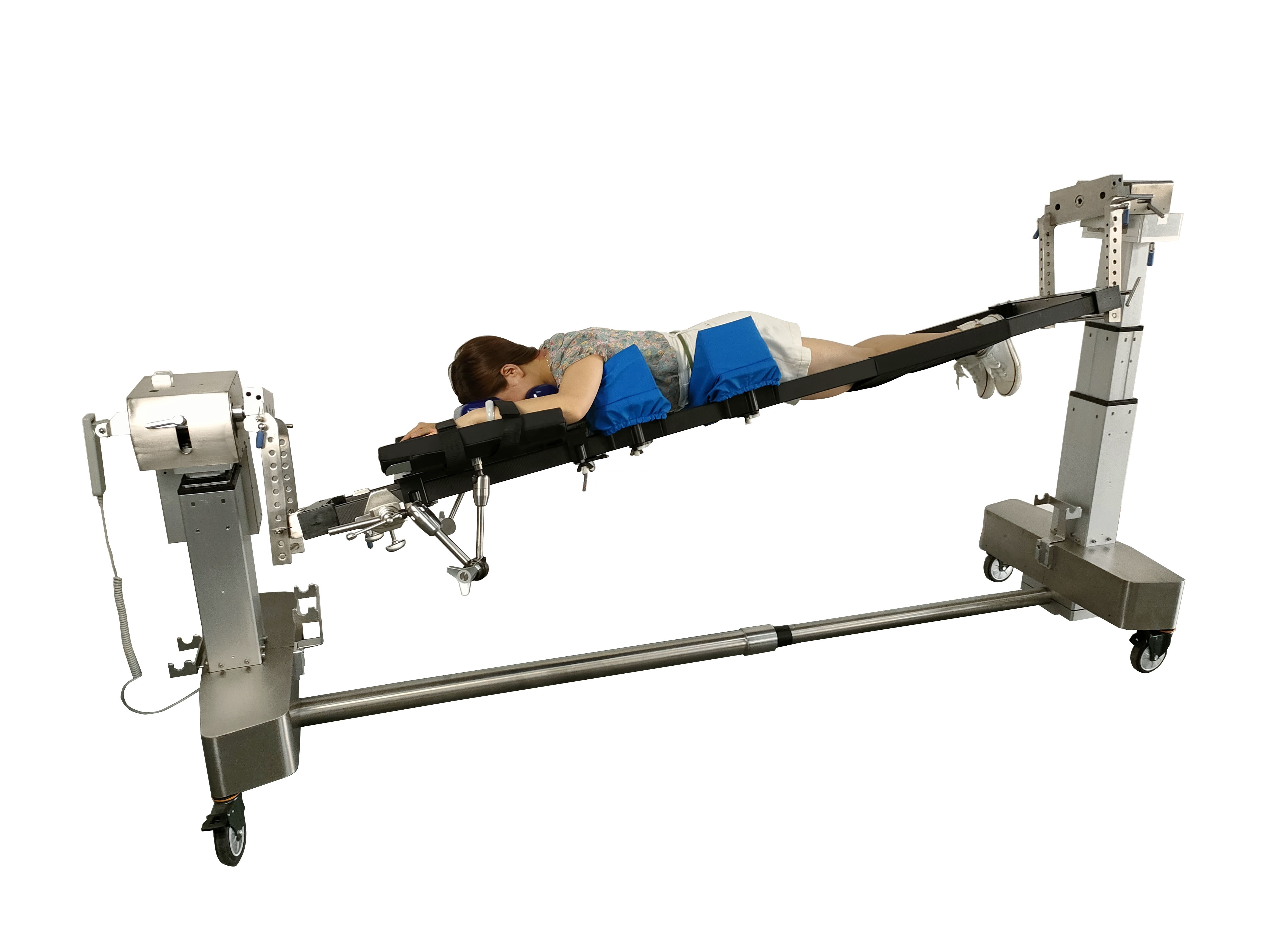

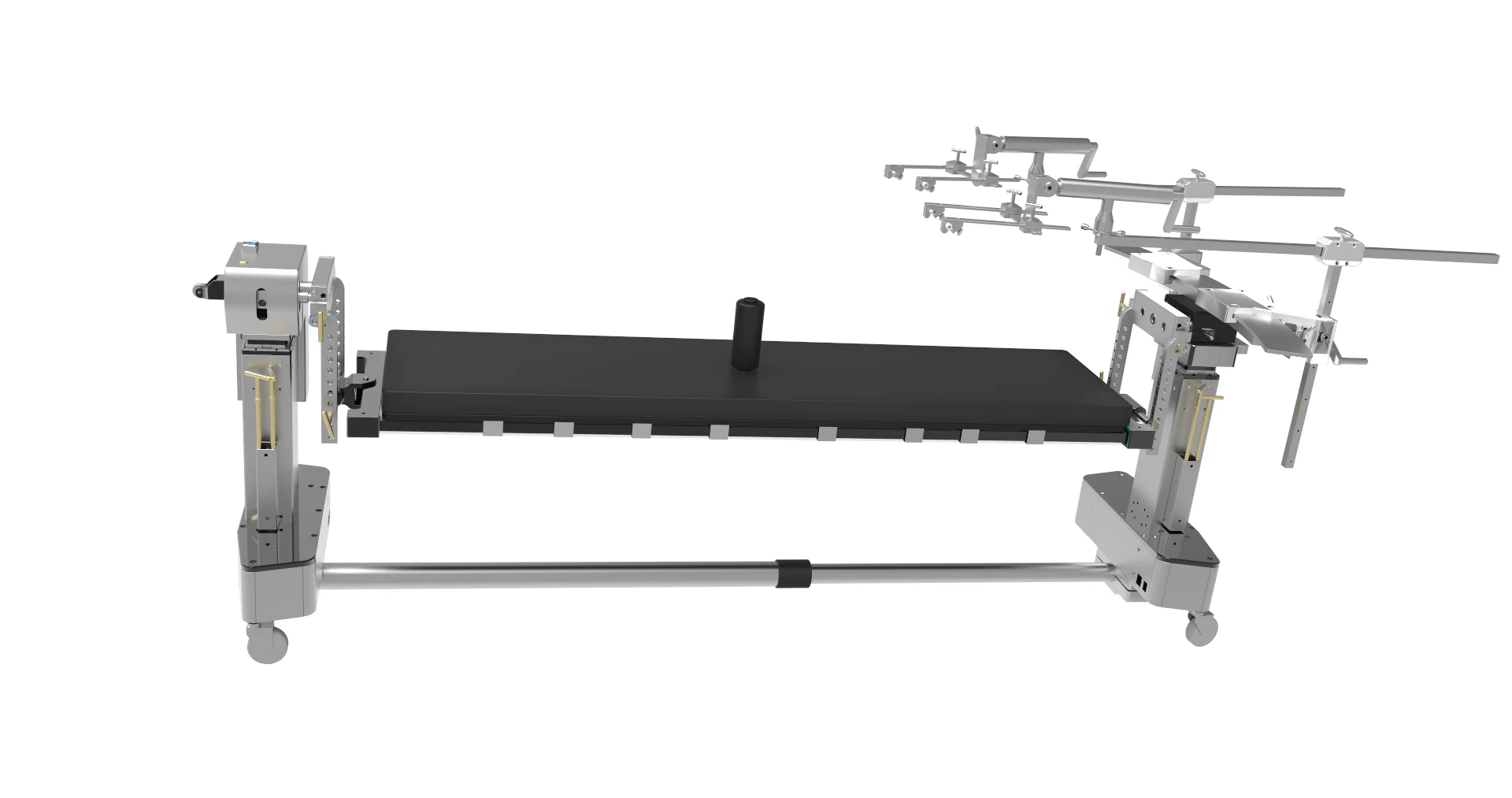

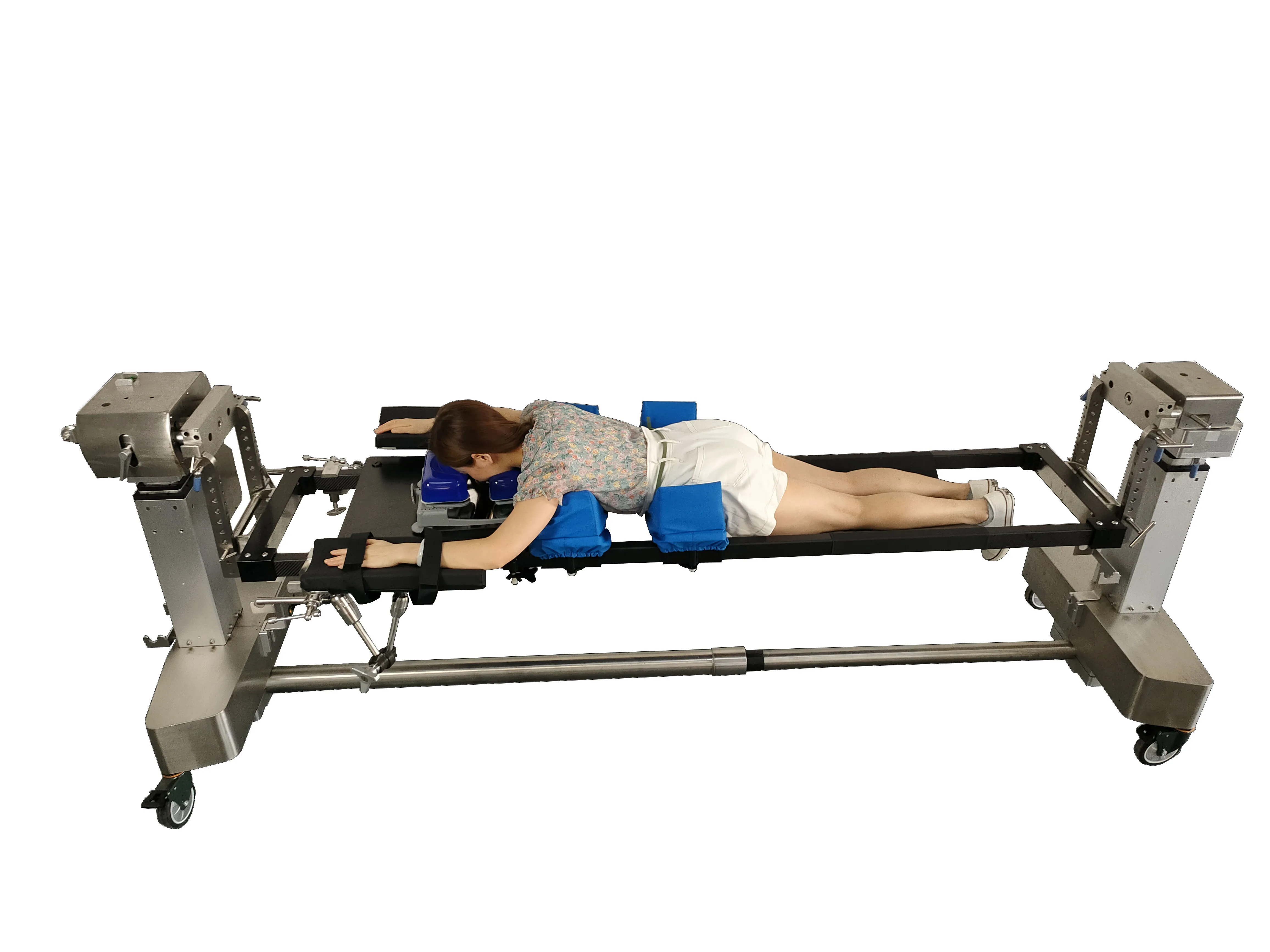

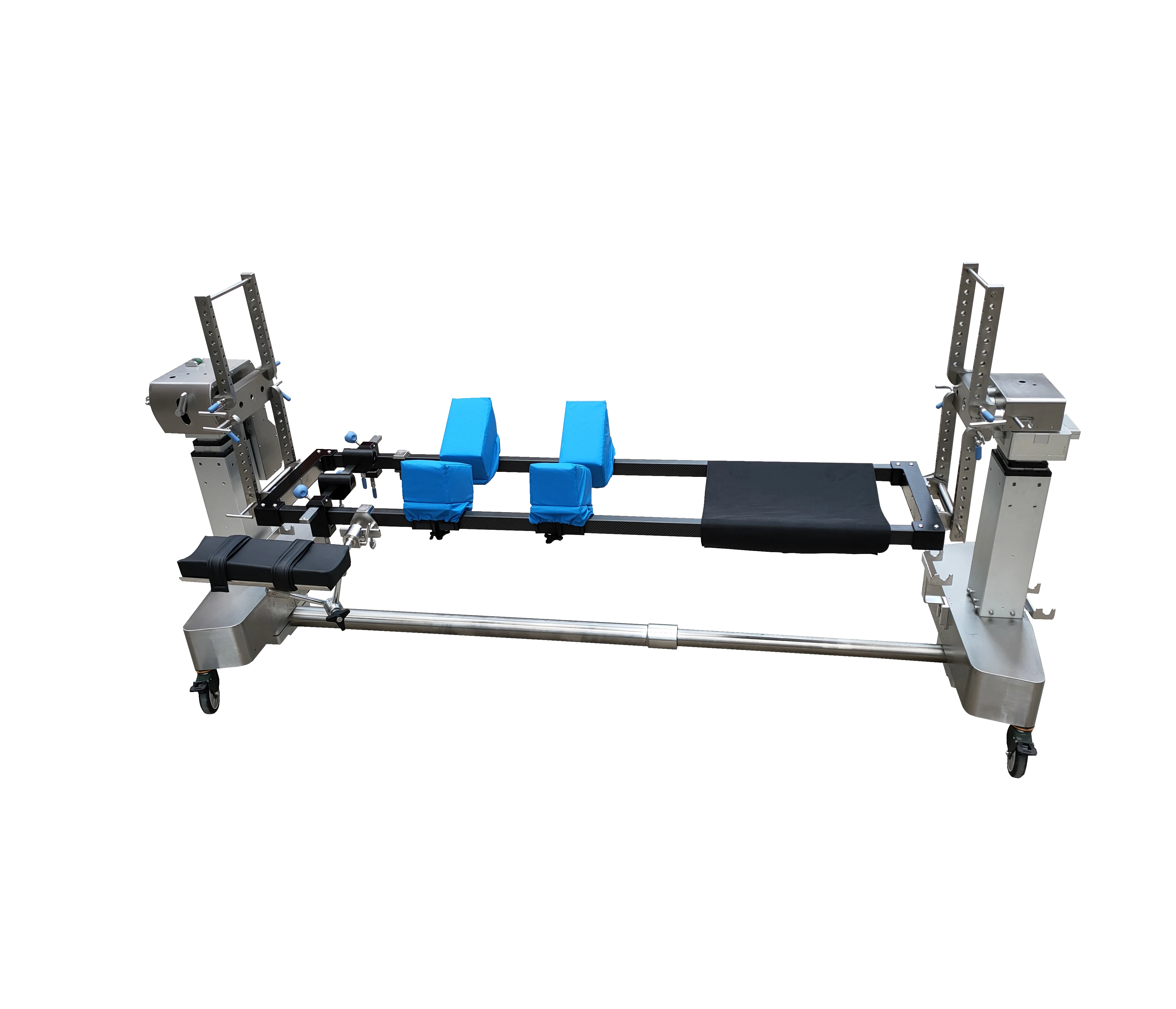

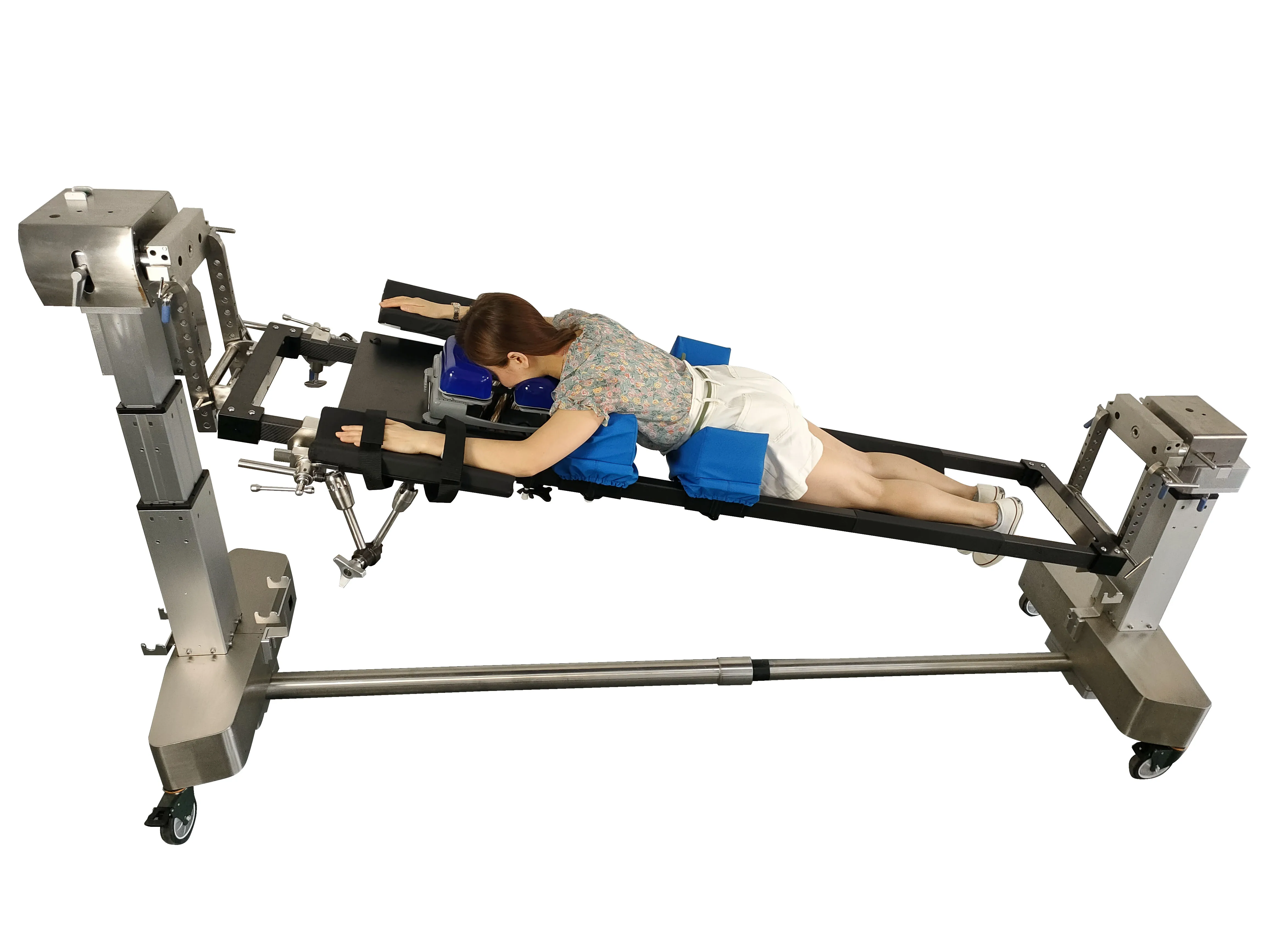

operating table /electric operating table/carbon fiber operating table
| Type: | Operating Table, Operating Table | Brand Name: | Feynman |
| Model Number: | AT900 | Place of Origin: | Shanghai, China |
| Instrument classification: | Class II | Power Source: | Electricity |
| Warranty: | 1 Year | After-sale Service: | Online technical support |
| Material: | 304Stainless steel | Product name: | Hydraulic lift column |
| Lifting Size: | 680mm-1130mm | Left and right angle: | ±20° |
| Front and back tilt: | ±10° |
| Supply Ability | 200 Piece/Pieces per Month |
| Packaging Details | Export wooden case | Port | shanghai |
Electric hydraulic Operating Table, can be installed on any brand operating table, lift and lift 680mm-1130mm, tilt angle of 20°, around 10 °, horizontal moving 300mm, with two brake oil pressure cylinder, The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; the circuit part contains the most basic functional configuration of the remote control, the power supply, the main board and so on.also according to customer needs to customize other styles and so,
This is a multi-functional electric hydraulic operating table. When the operating table has no electricity, including the battery, it can start the mechanical function. It can step on every movement, lift, left and right, back and back, back up and down, translation and other functions.
parameter
| Model | AT900 |
| Length | 2070mm |
| width | 500mm |
| Front and rear tilt | 12° |
| Left and right inclination | 20° |
| flip angle | 360° |
| Lifting range | 680mm-1130mm |
