High End Universal Orthopedic Electrical OT Table C-ARM X-RAY Radiolucent Operation Table Bed Manual Hydraulic Operating Table
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Type: | Operating Table, Operating Table | Brand Name: | Feynman |
| Model Number: | AT600 | Place of Origin: | Shanghai, China |
| Instrument classification: | Class II | Power Source: | electric hydraulic |
| Warranty: | 1 Year | After-sale Service: | Online technical support |
| Product name: | OT Table C-ARM X-RAY Operation Table Hydraulic Operating Table | Material: | 304 Stainless steel |
| Keywords: | Hydraulic lift column | Lifting Size: | 540mm-1040mm |
| Left and right angle: | ±20° | Front and back tilt: | ±30° |
| translation: | 300mm | Application: | Surgical |
| OEM: | Accept OEM |
Supply Ability
| Supply Ability | 200 Piece/Pieces per Month |
Packaging & delivery
| Packaging Details | Export wooden case for High End Universal Orthopedic Electrical OT Table C-ARM X-RAY Radiolucent Operation Table Bed Manual Hydraulic Operating Table | Port | Shanghai Port |
| Picture Example: |
Product Detail
Product Description

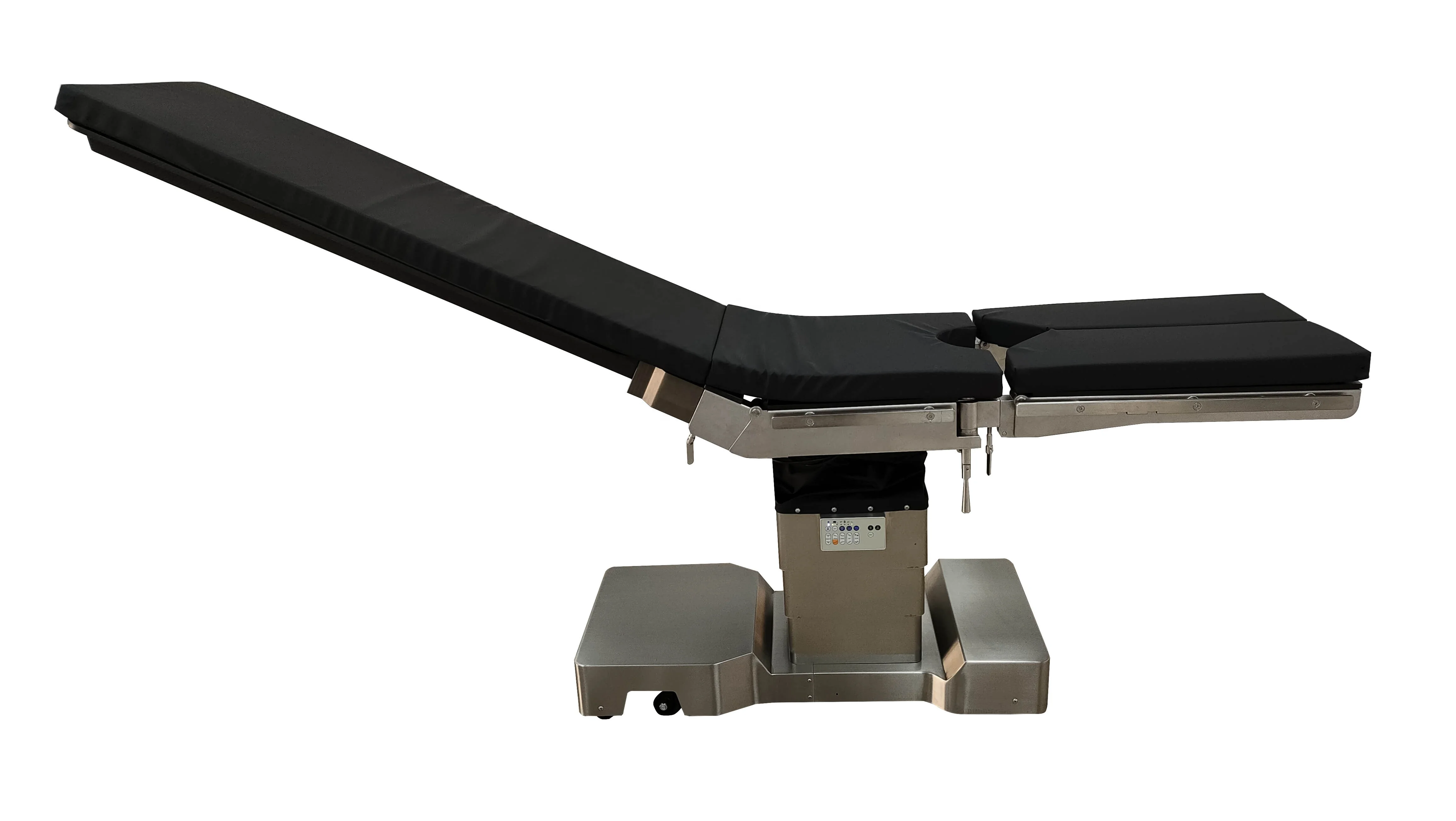

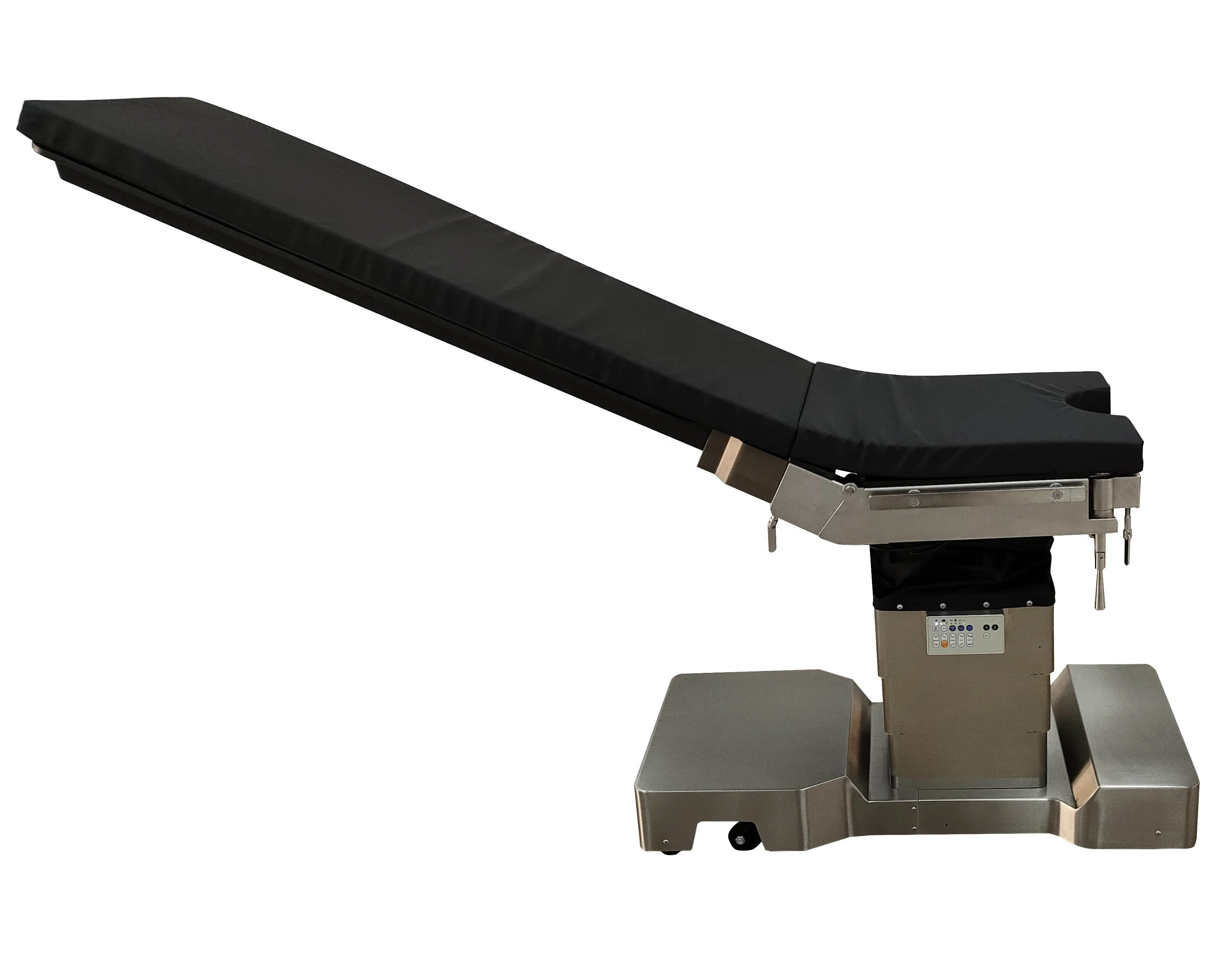

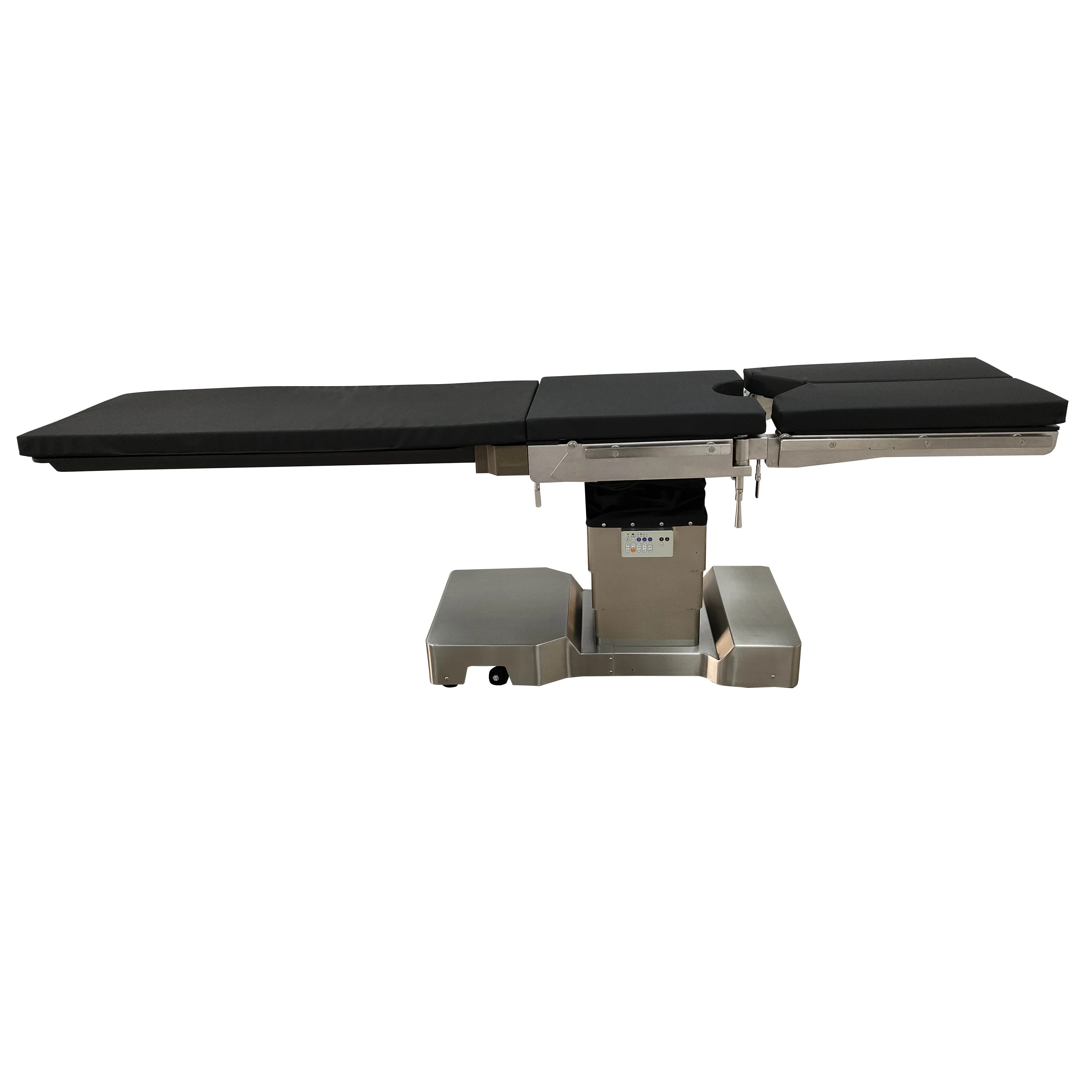

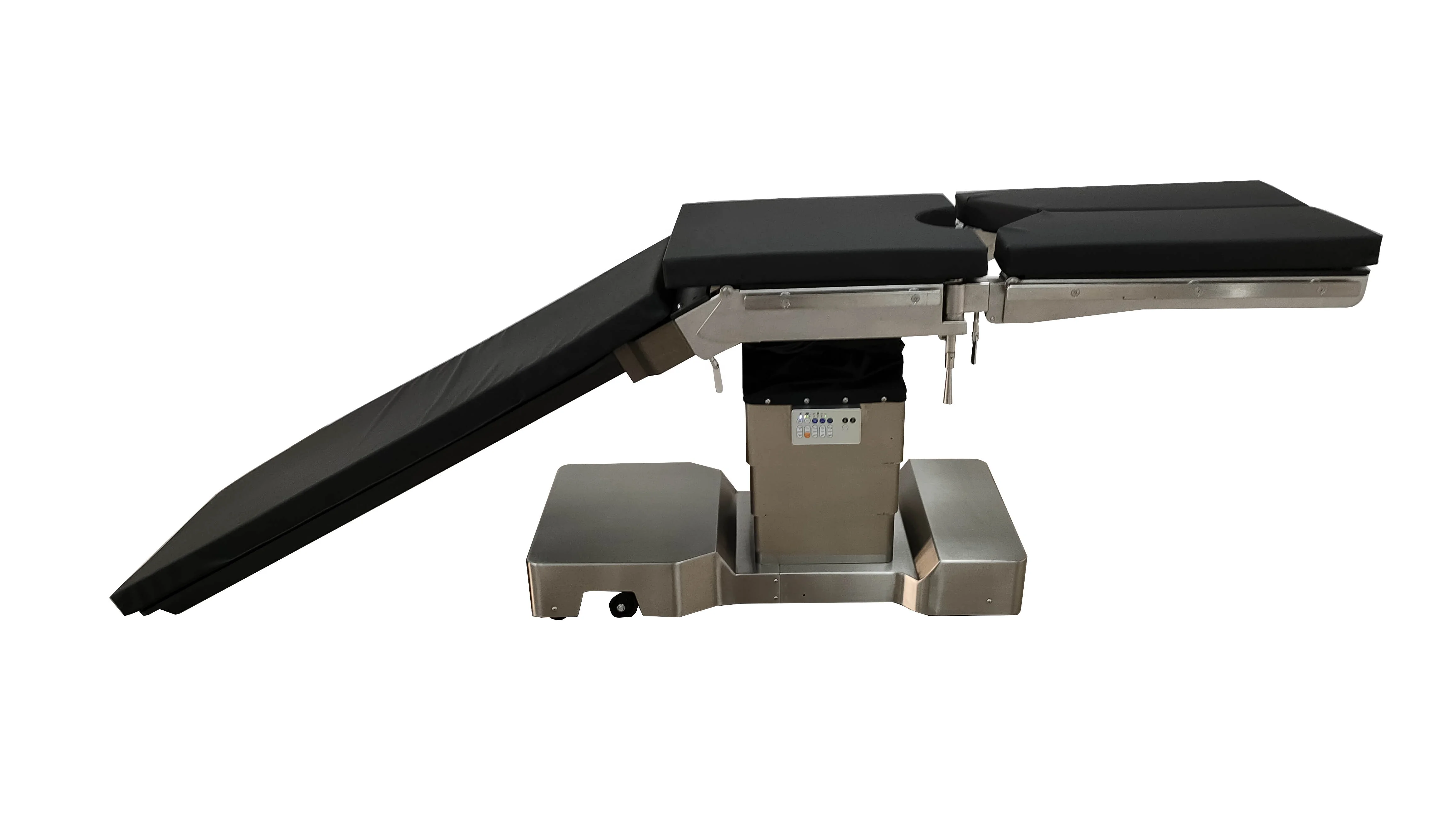

High End Universal Orthopedic Electrical OT Table C-ARM X-RAY Radiolucent Operation Table Bed Manual Hydraulic Operating Table
Electric hydraulic Operating Table can be cooperate to use with any brand operating table, with lift distance 680mm-1040mm, tilt angle of 30 degrees, inclination angle 20 degrees, horizontal moving 300mm, with two brake oil pressure cylinder. The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; the circuit part contains the most basic functional configuration of the remote control, the power supply, and the main board can be also customized.This is a multi-functional electric hydraulic operating table. When the operating table is without electricity, it can start the mechanical function. It can be adjusted on every movement, lift, left and right, back and back, back up and down, translation and other functions.
Specification
Model | AT600 |
Length | 2750mm |
width | 540mm |
Front and rear tilt | ±30° |
Left and right inclination | ±20° |
Back angle | +80°/ -40° |
Vertical translation | 300mm |
Foot angle | +30°--90° |
Horizontal angle of legs | 180° |
Lifting range | 540mm-1040mm |
Our Advantages
1. Base, lifting column shell, bed body, side rail adopt high quality 304 stainless steel material with acid and alkali
resistance, corrosion resistance feature, which is convenient to clean.
resistance, corrosion resistance feature, which is convenient to clean.
2.It can realize a key reset, memory, fault remind function with microcomputer control.
3. It adopts electric hydraulic system drive bed operation, and includes bed lift, tilt, left and right, tilt, back lift,
horizontal movement, horizontal reset, double controller system.
4. It is suitable for orthopedics, urology, obstetrics and gynecology operations, etc.
3. It adopts electric hydraulic system drive bed operation, and includes bed lift, tilt, left and right, tilt, back lift,
horizontal movement, horizontal reset, double controller system.
4. It is suitable for orthopedics, urology, obstetrics and gynecology operations, etc.
Packing & Delivery
Certifications
Company Profile
Profile of Shanghai Feiman Medical Technology Co., Ltd
Shanghai Feiman Medical Technology Co., Ltd is the comprehensive medical equipment manufacturer integrating in research, development, sales and service. The main products are operating table accessories, covering carbon fiber operating table, carbon fiber spinal frame system, shoulder joint traction frame system, pressurizer for irrigation fluid bag, lateral recumbent position fixation system, hand traction device, neurosurgery head frame (metal/carbon fiber), surgical fixation device, stirrup-shape multifunctional leg frame, multi-joint universal arm, spine surgery posture frame, carbon fiber lower limb orthopedic traction frame, surgical posture pad and all ordinary accessories of the operating table..
FAQ
Q: How are we going to install the equipment after purchasing?
A: We provide professional installation video to illustrate.
Q: How do you make sure that the product has high quality?
A: We have CE and ISO certificate. We also have production/inspection
report before packing.
Q: Can you put our logo on products?
A: Absolutely yes with detailed information such as logo. We will show you pictures of your
logo on the product before packing.
Q: Do you accept OEM (Original Equipment Manufacturer) service?
A: Yes. We accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 tears of OEM experiences.
Q: How do you make sure that the product has high quality?
A: We have CE and ISO certificate. We also have production/inspection
report before packing.
Q: Can you put our logo on products?
A: Absolutely yes with detailed information such as logo. We will show you pictures of your
logo on the product before packing.
Q: Do you accept OEM (Original Equipment Manufacturer) service?
A: Yes. We accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 tears of OEM experiences.
