Operating table accessories/Electric Hydraulic Operating Table/Electric Hydraulic Operating Table System
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Place of Origin: | Shanghai, China | Brand Name: | Feynman |
| Model Number: | AT800 | Power Source: | Electrohydraulic |
| Warranty: | 1 Year | After-sale Service: | Online technical support |
| Material: | 304 stainless steel, iron | Shelf Life: | 1years |
| Quality Certification: | ce | Instrument classification: | Class I |
| Safety standard: | MOL | Product Name: | Electric Hydraulic Operating Table System |
| Type: | Operating table accessories | Product name: | Hydraulic lift column |
| Lifting Size: | 440mm | Left and right angle: | ±20° |
| Front and back tilt: | ±30° | translation: | 300mm |
| Controller: | Dual Controller System | Back angle: | -40°-+80° |
Supply Ability
| Supply Ability | 200 Piece/Pieces per Month |
Packaging & delivery
| Packaging Details | Export wooden case for Operating table accessories/Electric Hydraulic Operating Table/Electric Hydraulic Operating Table System | Port | Shanghai Port |
| Picture Example: |
Product Detail
Product Description

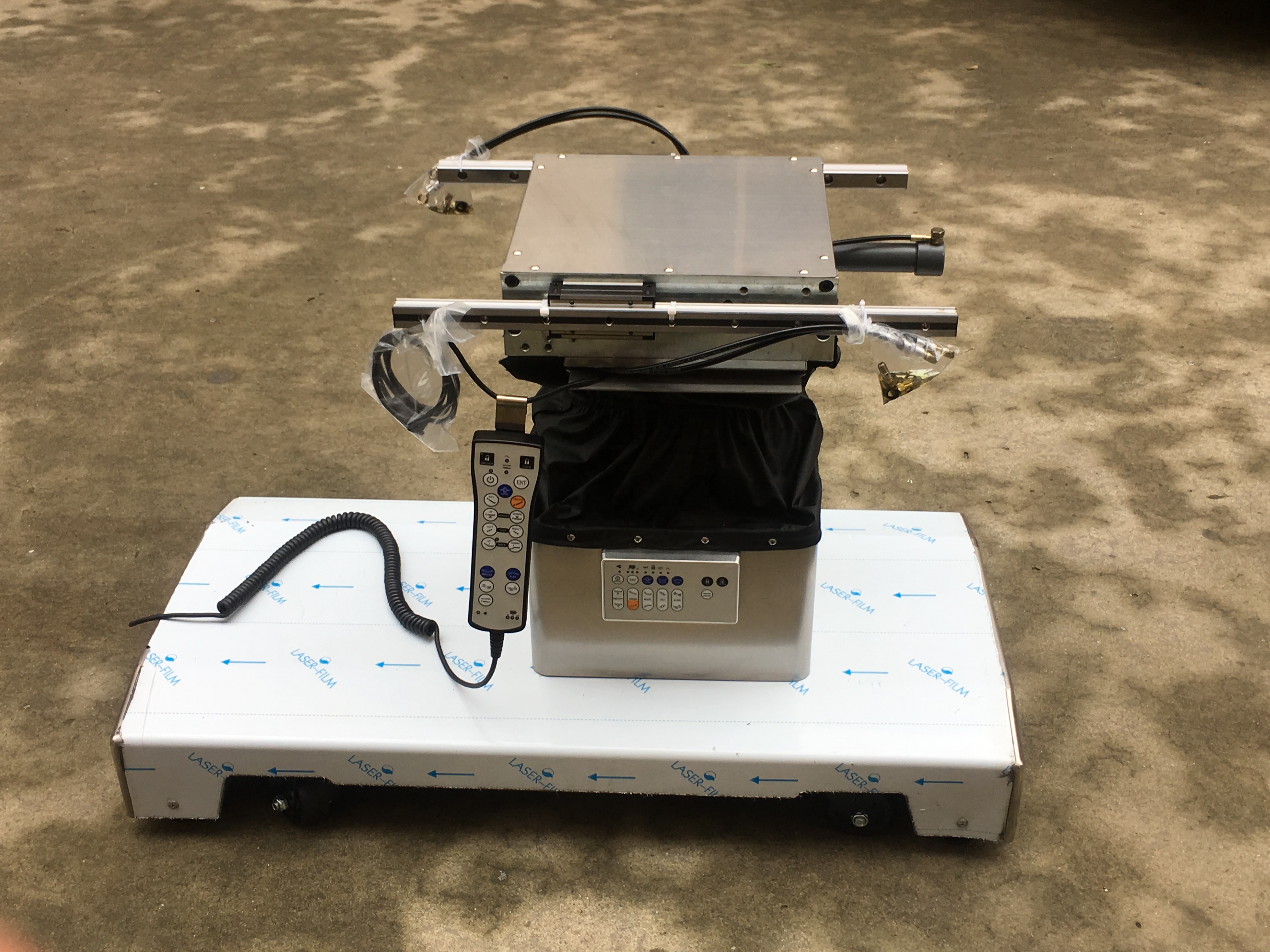

Operating table accessories/Electric Hydraulic Operating Table/Electric Hydraulic Operating Table System

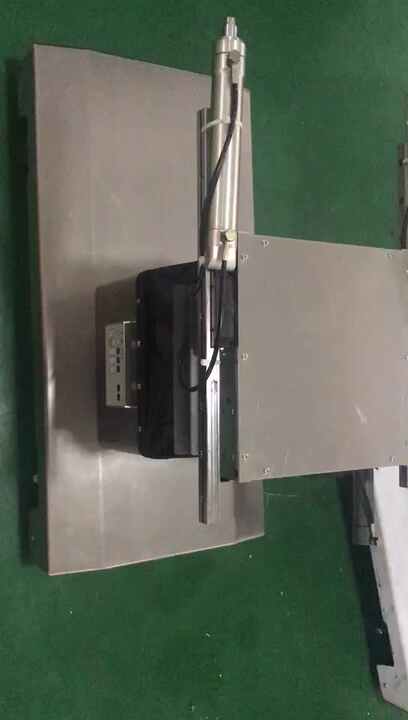

Operating table accessories Electric hydraulic system, can be installed on any brand operating table,

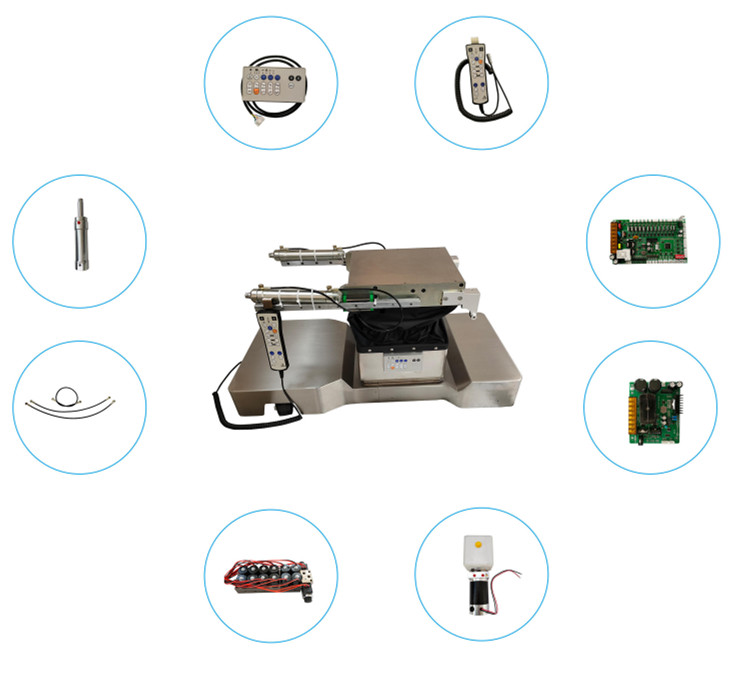

with two brake oil pressure cylinder.The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; and the circuit part contains the most basic functional configuration of the remote control, the power supply, the main board and so on.It can also customize styles according to customers' different requirements.
with two brake oil pressure cylinder.The electric hydraulic system is divided into two systems, the oil section and the circuit part. The oil circuit includes the oil pump, the oil pipe, the electromagnetic valve group and the oil pressure cylinder; and the circuit part contains the most basic functional configuration of the remote control, the power supply, the main board and so on.It can also customize styles according to customers' different requirements.
Specification
Product name | Electronically Controlled Hydraulic System of Operating Table |
Height range | 680mm-1120mm |
Left and Right Inclination Angle | ±20° |
Front-back tilt angle | ±30° |
Parallel moving range | 300mm/320mm/350mm |
Back angle | -40°-+80° |
brake | Electric brake |
Number of Control Systems | Dual Controller System |
Our Advantages
1. Electrical &hydraulic
2. High stability
3. Heavy load
4. Multi-function
5. Customized order
2. High stability
3. Heavy load
4. Multi-function
5. Customized order
Packing & Delivery
Company Profile
Profile of Shanghai Feiman Medical Technology Co., Ltd
Shanghai Feiman Medical Technology Co., Ltd is the comprehensive medical equipment manufacturer integrating in research, development, sales and service. The main products are operating table accessories, covering carbon fiber operating table, carbon fiber spinal frame system, shoulder joint traction frame system, pressurizer for irrigation fluid bag, lateral recumbent position fixation system, hand traction device, neurosurgery head frame (metal/carbon fiber), surgical fixation device, stirrup-shape multifunctional leg frame, multi-joint universal arm, spine surgery posture frame, carbon fiber lower limb orthopedic traction frame, surgical posture pad and all ordinary accessories of the operating table.
FAQ
Q: How are we going to install the equipment after purchasing?
A: We provide professional installation video to illustrate.
Q: How do you make sure that the product has high quality?
A: We have CE and ISO certificate. We also have production/inspection
report before packing.
Q: Can you put our logo on products?
Q: How do you make sure that the product has high quality?
A: We have CE and ISO certificate. We also have production/inspection
report before packing.
Q: Can you put our logo on products?
A: Absolutely yes with detailed information such as logo. We will show you pictures of your logo on the product before packing.
Q: Do you accept OEM (Original Equipment Manufacturer) service?
Q: Do you accept OEM (Original Equipment Manufacturer) service?
A: Yes. We accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 tears of OEM experiences.
